High-grade metal spiral binding filament, suitable for coil books of different colors
Company Profile.pdf
Specification Of Compression Coil Spring
In custom compression spring design, the space allotted governs the dimensional limits of a spring with regard to allowable solid height and outside and inside diameters. These dimensional limits, together with the load and deflection requirements, determine the stress level and mechanical property requirements of the material. It is extremely important to consider carefully the space allotted to ensure that the spring will function properly, thereby avoiding costly design changes.
The illustration of spring dimensions below is recommended as a guide in specifying heavy duty compression springs. The functional characteristics of spring design should be given as mandatory specifications. Secondary characteristics, which may well be useful for reference, should be identified as advisory data. This practice controls the essential requirements while providing as much design flexibility as possible to the spring manufacturer in meeting these requirements.
Quick details:
A. Metal spiral binding coil (any color can be customized), used for notebooks, weekly calendars, calendars, picture albums, etc.. Textbook binding;
C. This product has complete specifications, 2:1 3:1 4:1 pitch, and inner diameter up to 16-50MM.
d. The thickness of the wire diameter can be thickened on a conventional basis.
e. Packaging can be made according to requirements.
Specifications :
| Pitch | Diameter(Inch) | Diameter(mm) | PCS/BOX | BOX/CARTON | Binding Capacity |
| 3:1 | 3/16" | 4.8 | 100 | 10 | 3.5mm |
| 1/4" | 6.4 | 4.0mm |
| 5/16" | 7.9 | 5.6 |
| 3/8" | 9.5 | 7.0 |
| 7/16" | 11.0 | 9.5 |
| 1/2" | 12.7 | 11.0 |
| 9/16" | 14.3 | 12.7 |
| 2:1 | 5/8" | 16.0 | 50 | 13.2 |
| 3/4" | 19.0 | 50 | 15.0 |
| 7/8" | 22.0 | 50 | 19.0 |
| 1" | 25.4 | 50 | 21.0 |
| 1 1/8" | 28.6 | 30 | 24 |
| 1 1/4" | 31.8 | 30 | 28 |
| 1 1/2" | 38.1 | 20 | 32 |
Advantage :
1. Factory supply with competive price ;
2. Wide range of color choice ;
3. Pre-cutting service for free ;
4. Widely used in various kinds of booking binding ;
5. Fast delivery .

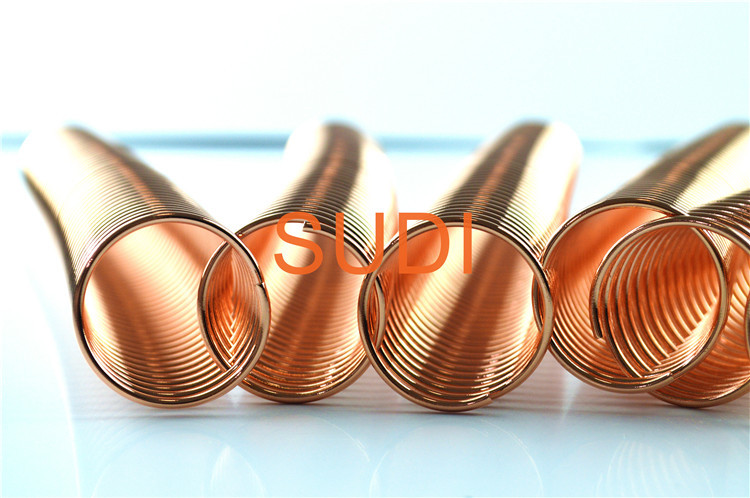

Physical shooting:
Environmental certificate:
Product Tags:
|
|
High Grade Single Loop Wire Electroplated , 50mm Coated Binding Wire Images
|
